Home » Products » PVC Caps » PVC Caps

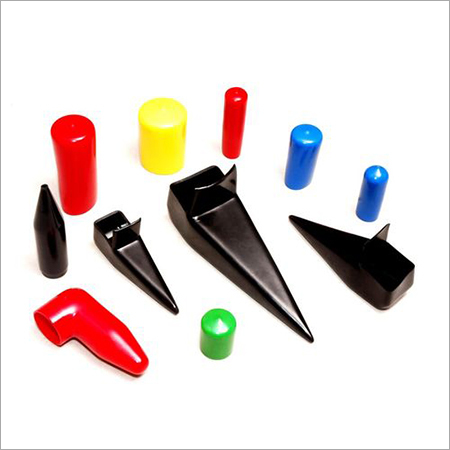

PVC Caps

PVC Caps
PVC Caps
Send Inquiry
Product Code : 01
Price And Quantity
  • Minimum Order Quantity
  • 5000
  • Unit of Measure
  • Unit/Units
  • Price Range
  • 30.00 - 2000.00 INR
Product Description

Technical Specifications

Color

All

Size

Any

Brand

Vin Dip

Packing Type

As required

Shape

All

Material

PVC



Properties Category



Test Property



Standard Test Method

Standard Grades of Plastisol EGR,GPR,GPBL,VDSB, HGBL,HGR,GPRB,GPYL, GPOR,GPWG,HGRY,S.GRAY,SPRFMSpecified Values

*Note : All the above tests are conducted as per testing plans - ref docs QA/QIP 02/8.2 REV NO 1 and QA/QIP 03/7.2 Rev No.00 at an accredited laboratory/ inhouse lab facility


Electrical Properties

Dielectric Strength

ASTM D149/IEC 60243

4~10kV/mm

Volume Resistivity

ASTM D257

1X109~1X1011Ohm

Mechanical Properties

Tensile Strength

ASTM D638/JIS K6723

6.3~9.32MPa

Elongation

ASTM D638/JIS K6723

300-520%

Hardness

ASTM D2240

50-80 Shore A

Flammability

UL-94 v-0

Self Extinguishes With in 15 Seconds

Tear Strength

ASTM D 624

>20N/mm

Thermal Properties

Thermal Stability at 90oC/2 hours

VD001

No Cracks/blisters/ bubbles on surface

Freezing

(-)400C/30 min

No Cracks/blisters/ bubbles on surface

Retention of Tensile Strength after thermal ageing at 120oC/120 hours

ASTM D638/JIS K6723

>90%

Retention of Elongation after thermal ageing at 120oC/120 hours

ASTM D638/JIS K6723

>40%

Chemical Properties

Retention of Tensile Strength After Oil ageing at 70oC/4 hours

ASTM D638/JIS K6723

>80%

Retention of Elongation After Oil ageing at 70oC/4 hours

ASTM D638/JIS K6723

>50%

RoHS

Cd,Pb,Hg,Cr6 ,PBBs,PBDEs

IEC 62321:2008

Not Detected

Colour



Black, Gray, Orange, Red, Green, Reynold Blue, Yellow

Trade Information
  • Supply Ability
  • as per buyer requirement Per Day
  • Delivery Time
  • 15 Days
