VINYL PROTECTION CAPS

VINYL PROTECTION CAPS
VINYL PROTECTION CAPS
Send Inquiry
Product Code : ATVC
Brand Name : VIN DIP
Price And Quantity
  • Minimum Order Quantity
  • 5000
  • Unit of Measure
  • Unit/Units,
  • Price
  • 30p-3000k INR
Product Description

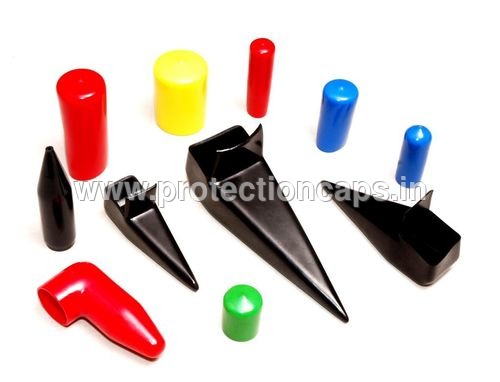

Vinyl Protection caps

Protection caps and plugs-Aesthetically protect your product.Made of soft and flexible vinyl material these caps are unbreakable and seamless . Vin Dip has these caps in a wide range from 2 mm to 300 mm diameter. These caps are used for protection,masking,safety as well as identification and branding purpose.

Vindip offers vinyl caps in countless shapes & sizes by using cutting edge dip molding technology with high end infrastructure for design, development and mass production. These caps are made in plastisol and are Glossy, attractive, flexible and unbreakable in nature. Standard sizes are readily available and also can be custom made as per the customer requirement. Vindip offers numerous plastisol formulations to suit wide range of custom options like color, texture, thermal, chemical and electrical properties



Application of vinyl caps

  •  Masking agents during painting, plating and surface finishing.
  • To cover sharp edges of surgical and stationary articles.
  •  To shield expensive tool tips from damage.
  •  Bed frames and exercise equipment.
  •  Rods, pipes and bolt end caps.
  •  Dust and moisture barriers.
  •  Spark plug tip protectors.
  •  Can act as Tool grips.
  •  Electronic gadgets.
  •  Cable accessories.
  •  Thread protectors.
  •  Tube ends caps.
  •  Flange covers.

Technical Specifications


Color

All

Size

Any

Brand

Vin Dip

Packing Type

As required

Shape

All

Material

PVC

Properties Category

Test Property

Standard Test Method

Standard Grades of Plastisol EGR,GPR,GPBL,VDSB, HGBL,HGR,GPRB,GPYL, GPOR,GPWG,HGRY,S.GRAY,SPRFMSpecified Values

*Note : All the above tests are conducted as per testing plans - ref docs QA/QIP 02/8.2 REV NO 1 and QA/QIP 03/7.2 Rev No.00 at an accredited laboratory/ inhouse lab facility


Electrical Properties

Dielectric Strength

ASTM D149/IEC 60243

4~10kV/mm

Volume Resistivity

ASTM D257

1X109~1X1011Ohm

Mechanical Properties

Tensile Strength

ASTM D638/JIS K6723

6.3~9.32MPa

Elongation

ASTM D638/JIS K6723

300-520%

Hardness

ASTM D2240

50-80 Shore A

Flammability

UL-94 v-0

Self Extinguishes With in 15 Seconds

Tear Strength

ASTM D 624

>20N/mm

Thermal Properties

Thermal Stability at 90oC/2 hours

VD001

No Cracks/blisters/ bubbles on surface

Freezing

(-)40oC/30 min

No Cracks/blisters/ bubbles on surface

Retention of Tensile Strength after thermal ageing at 120oC/120 hours

ASTM D638/JIS K6723

>90%

Retention of Elongation after thermal ageing at 120oC/120 hours

ASTM D638/JIS K6723

>40%

Chemical Properties

Retention of Tensile Strength After Oil ageing at 70oC/4 hours

ASTM D638/JIS K6723

>80%

Retention of Elongation After Oil ageing at 70oC/4 hours

ASTM D638/JIS K6723

>50%

RoHS

Cd,Pb,Hg,Cr6 ,PBBs,PBDEs

IEC 62321:2008

Not Detected

Colour

-- --

-- --

Black, Gray, Orange, Red, Green, Reynold Blue, Yellow



Trade Information
  • Supply Ability
  • as per buyer requirement Per Day
  • Delivery Time
  • 15 Days
  • Sample Available
  • Yes
  • Sample Policy
  • Free samples are available
  • Packaging Details
  • carton boxes
  • Main Domestic Market
  • All India
